Casement Window
  • 139 Shangri-La Aluminum Clad Wood Thermal-break Casement Door Series
  • 139 Shangri-La Aluminum Clad Wood Thermal-break Casement Door Series
139 Shangri-La Aluminum Clad Wood Thermal-break Casement Door Series

It use s the design: window and mesh integration, thermal-break bridge, main and auxiliary frames, unique mosaic structure.

< Previous
Next >
Back
Product Features


· It use s the design: window and mesh integration, thermal-break bridge, main and auxiliary frames, unique mosaic structure.

· Glass panel has European standard groove C, Mesh pane has European standard groove U.

They are equipped with mechanical heavy-duty hardware from GU brand imported.

· Wide steel strips are inlaid onto the auxiliary frame, it enhances the stereoscopic and integral vision, and

solved the possible short- board on materials cutting and process

· It uses Brazil rosewood, oak wood and teakwood from south America. By combined with the high precise aluminum alloy profiles, it has the heat preservation property of natural wood, tenacity and weather-resistant

property of aluminum alloy. it is close to the nature.

· It uses the eco-friendly resin materials, match colors strictly according to RAL standard. It has elegant grains

and fresh color.

· The thermal-break design ensures energy-saving and heat preservation.

· It uses EPDM sealing rubber strips that are anti-aging and has better performance of seal.



product structure


Side frame of window sash.jpg

Product parameters


Production Materials】  Aluminum alloy, High strength manganese and magnesium alloy

Window Sash】  visible width:95.5mm,  height: 74mm

Window Frame】  visible width: 69.2mm,  height: 139mm

Open Style】  window sash open-outward,  mesh pane open-inward

Glass Specification】  5mm+20A+5mm double tempered glass(optional glass process)


Product color


氟碳铁灰(室外).png  咖啡色(室外).png  柚木(室内).png

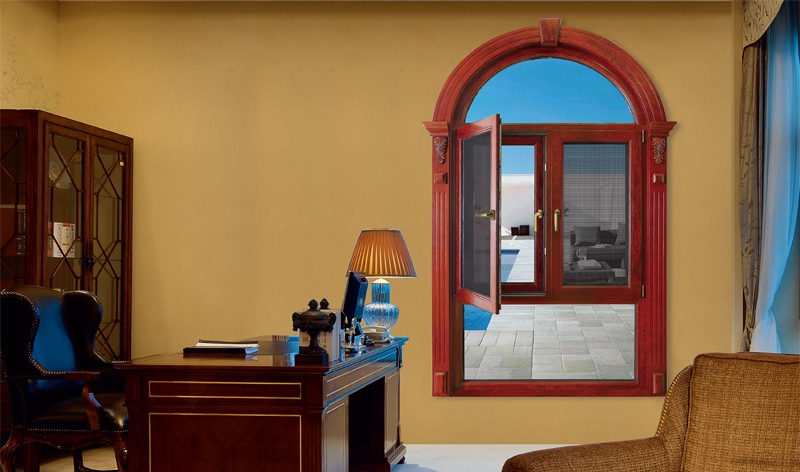

product style


图层 2.jpg

Product suggestion


Recommended Scope of Use:

High-class clubs, Star-rated hotels, Luxury villas, Large gardens and other large outdoor space.


Recommended Decorative Styles:

Luxury European style, Classic Chinese style, Fashion simple European style, Baroque style, Rural style.


图层 3.jpg
